Gilliam Place

Gilliam Place

Mixed-Use, Apartments-Condos

Project Information

Client: KGD Architecture

Location: Arlington, VA

Completion: 2019

Building Type: Mixed-Use, Apartments-Condos

Project Overview

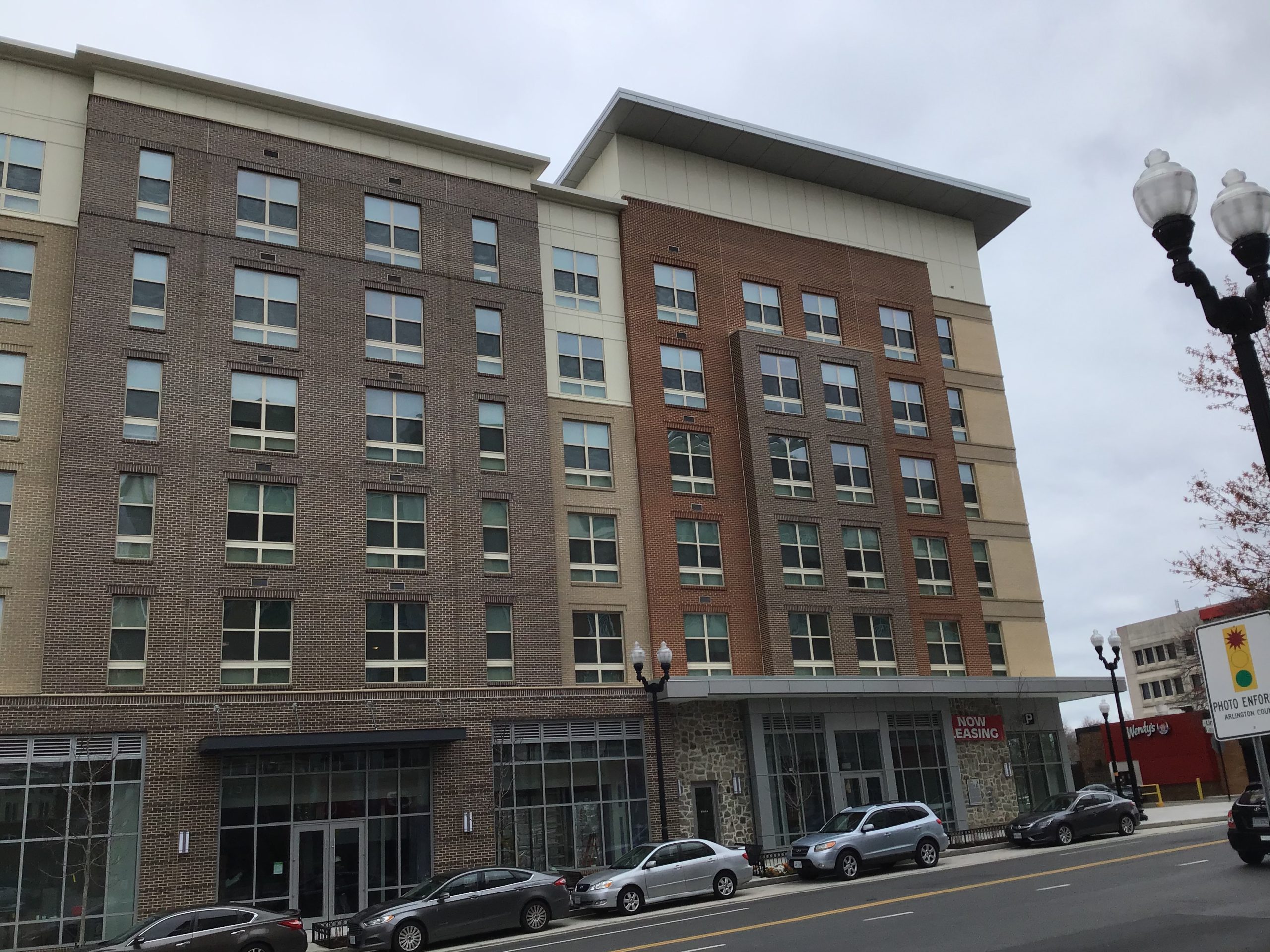

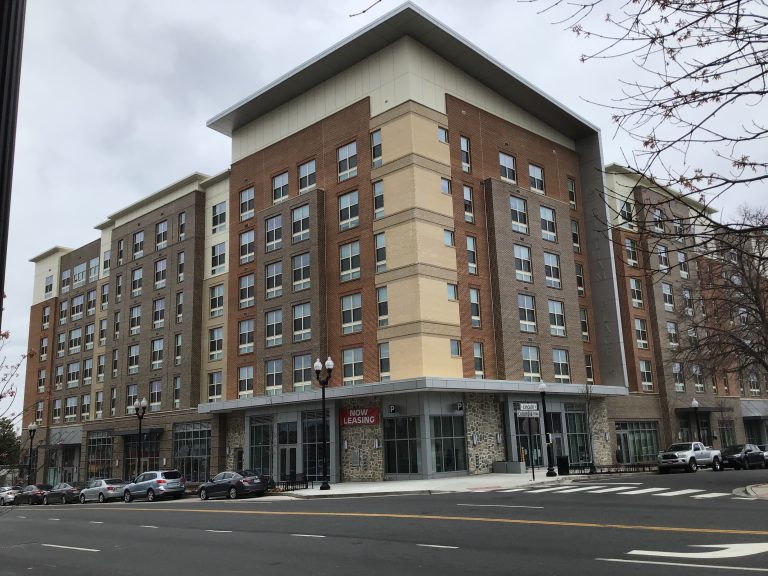

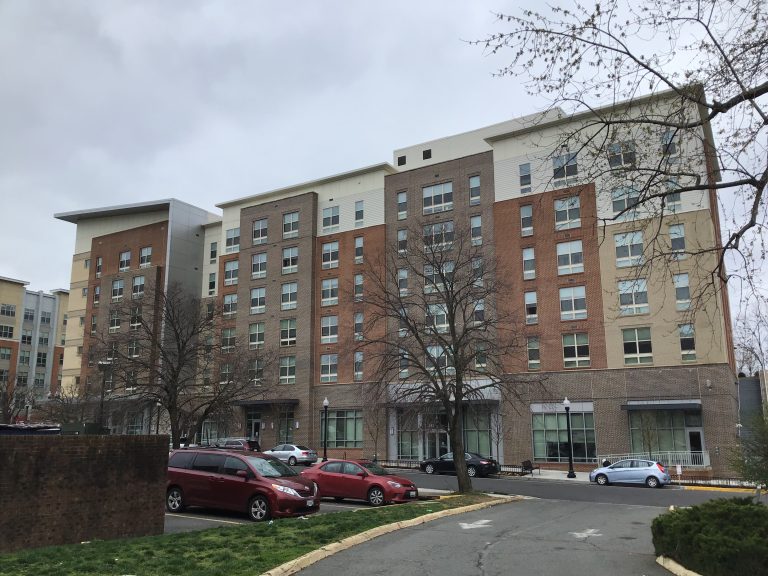

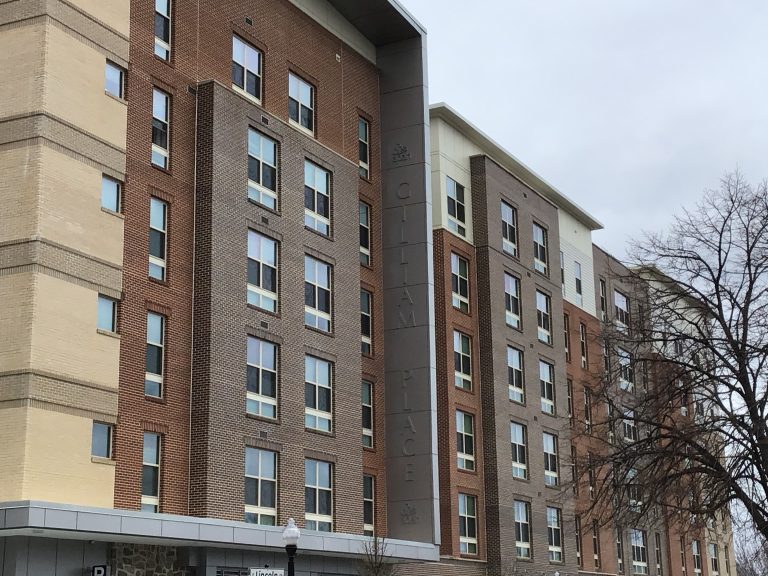

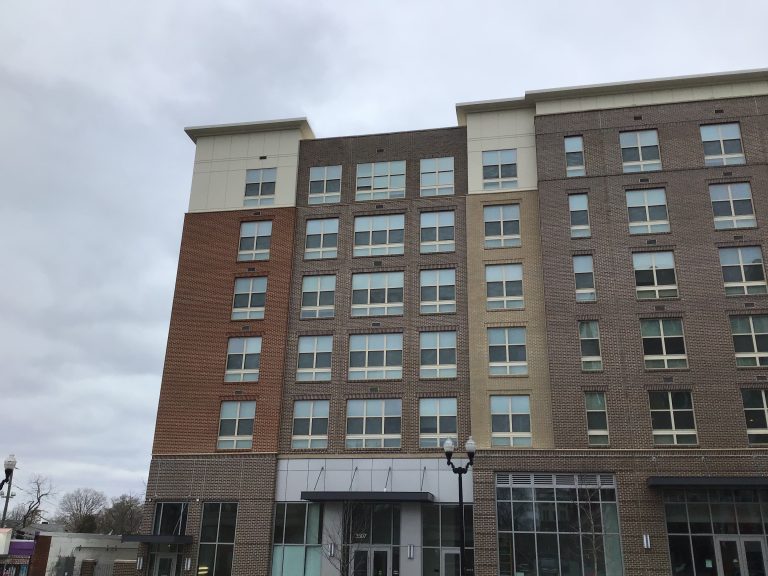

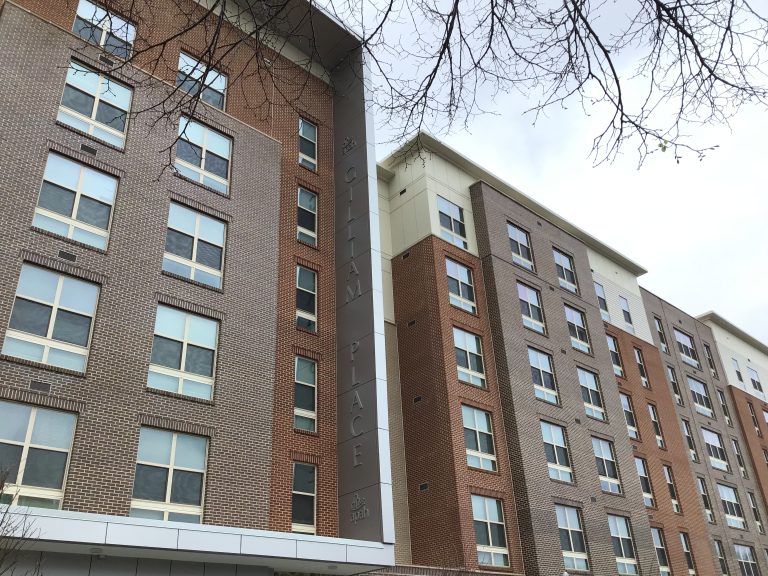

Gilliam Place is a mixed-use project consisting of 173 dedicated affordable housing units, community space, retail, and below grade parking. This 165,000 SF six-story building consists of wood frame on concrete podium construction. Five floors of residential units surround an exterior courtyard and rear terrace space. This project develops the site on the corner of Columbia Pike and Lincoln Street, previously the home of Arlington Presbyterian Church (APC). APC worked with Arlington Partnership for Affordable Housing (APAH) to ensure the project would promote and benefit the local community. Subtle architectural elements respectfully reference the church, such as reclaimed stone at the main storefront. The retail space has been designed with modern ministry uses in mind to provide APC the opportunity to return to the site.

Project Team

Architect

KGD Architecture

Owner/Developer

APAH

General Contractor

Donohoe Construction Company

Services & Technical Details

Services Provided

Structural Design & AnalysisConstruction Observation

Technical Details

Structural System: CIP, Elevated Slab, Type V Wood-Frame

Foundation Type: Conventional/Shallow, Spread Footings
